Can Silver or Brass Be PVD Coated? A Professional Guide for Jewelry Brands

Neither material is automatically better. Sterling silver is usually the stronger choice when precious-metal value and a premium material story are central to the collection. Brass is often preferred when the brand needs larger shapes, broader design flexibility, and more scalable pricing.

1. Surface Preparation Is Critical

PVD films are thin and generally reproduce the surface beneath them. They do not fill casting pores, hide polishing lines, or repair scratches.

The silver jewelry should therefore be fully cast, soldered, polished, and cleaned before entering the PVD process. Stone setting and assembly must also be planned in the correct sequence. A poor surface will remain visible after coating and may look more obvious under a hard, reflective finish.

2. Intermediate Layers Must Match the Product

Depending on the silver alloy, PVD material, color target, and performance requirement, the manufacturer may use a compatible intermediate or barrier layer before the decorative PVD finish.

The purpose of this layer may include:

• improving surface stability;
• supporting adhesion;
• reducing diffusion between layers;
• helping control tarnish beneath damaged or porous areas; and
• creating the correct color foundation.

There is no universal silver-PVD recipe. The proposed layer structure should be validated on the actual design rather than copied from a different product or base metal.

3. Temperature and Components Must Be Reviewed

PVD is a vacuum process, and the process temperature varies according to the equipment and coating recipe. Silver jewelry may contain solder joints, delicate structures, pearls, enamel, resin, glued stones, or heat-sensitive gemstones.

These materials should be reviewed before production. In some designs, sensitive elements may need to be added after PVD. In others, a lower-temperature process and product-specific sampling may be required.

4. Soft Silver Can Deform Beneath a Hard Coating

PVD coatings can be hard and wear-resistant, but sterling silver is comparatively soft. If the base metal bends, dents, or is deeply scratched, the coating may crack or separate because the substrate has deformed underneath it.

For this reason, PVD is more suitable for finished silver jewelry that will retain its shape than for items that must be resized, bent, or formed after coating.

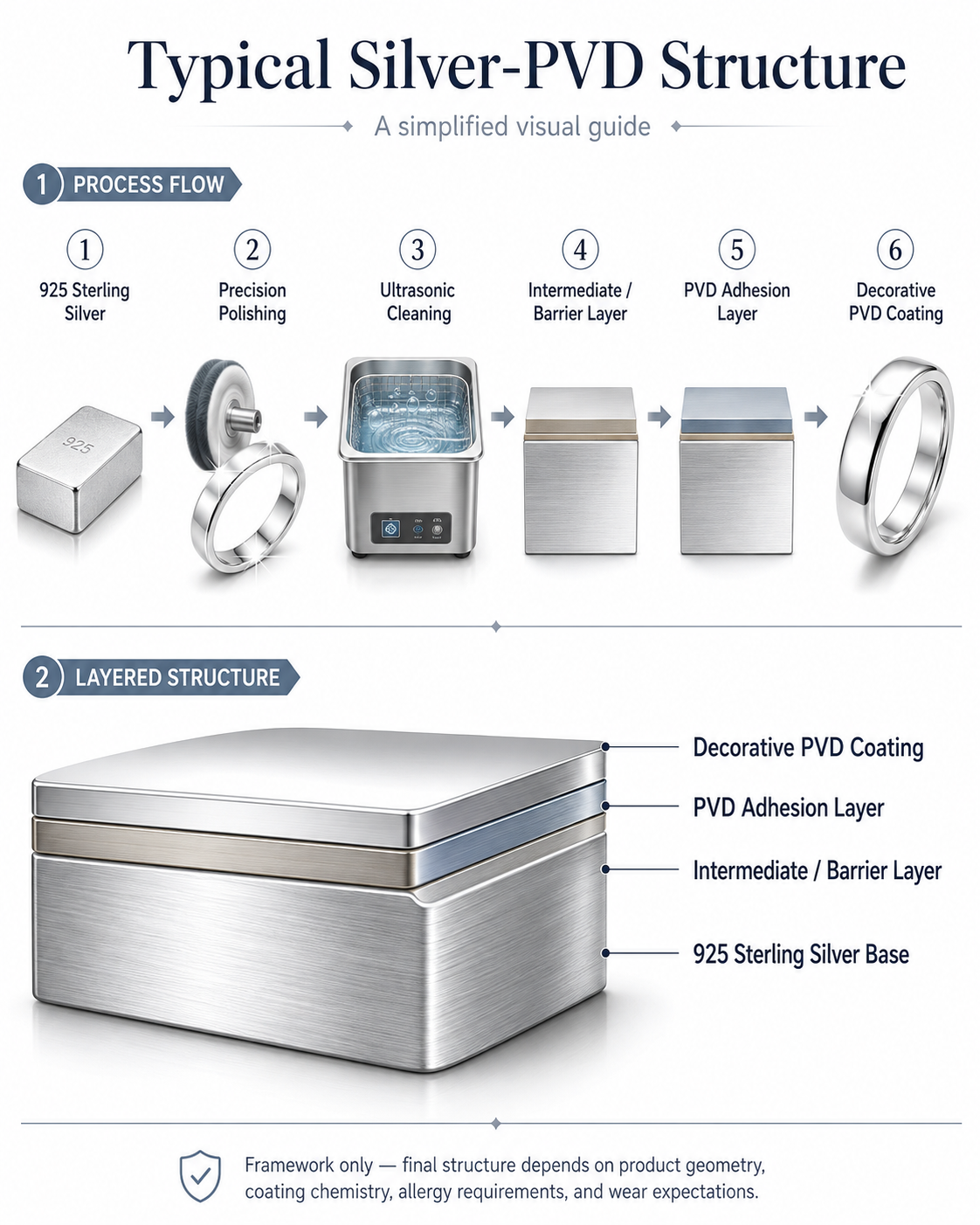

A Typical Silver-PVD Structure

A project-specific structure may follow this general logic:

925 sterling silver → precision polishing → ultrasonic cleaning → compatible intermediate or barrier layer → PVD adhesion layer → decorative PVD coating

This is an engineering framework, not a fixed formula. The final structure should reflect the product geometry, coating chemistry, target market, allergy requirements, and expected wear.

Can Brass Jewelry Be PVD Coated?

Yes. Brass is widely used for PVD-coated fashion and demi-fine jewelry, but direct PVD on unfinished brass is generally not the preferred industrial approach.

Brass is a copper-zinc alloy. It offers good formability, detailed casting, and cost-efficient production, but its corrosion behavior and surface porosity require careful preparation.

A peer-reviewed review of decorative PVD technologies reports that direct PVD on brass may not provide sufficient corrosion protection. Industrial applications commonly use electroplated leveling and anticorrosion layers before applying the PVD topcoat.

Why Brass Usually Needs Underlayers

PVD does not automatically seal every pore or recessed area of the substrate. PVD films commonly develop through a line-of-sight deposition process, and film porosity or discontinuities can allow the environment to reach the substrate.

If moisture, sweat, or chemicals reach exposed brass through defects or worn edges, the base metal may corrode, discolor, or contribute to delamination.

A well-designed underlayer system can:

• smooth the brass surface;
• reduce visible casting and polishing defects;
• isolate the copper alloy;
• improve corrosion performance;
• reduce metal migration; and
• provide a stable foundation for the PVD layer.
•

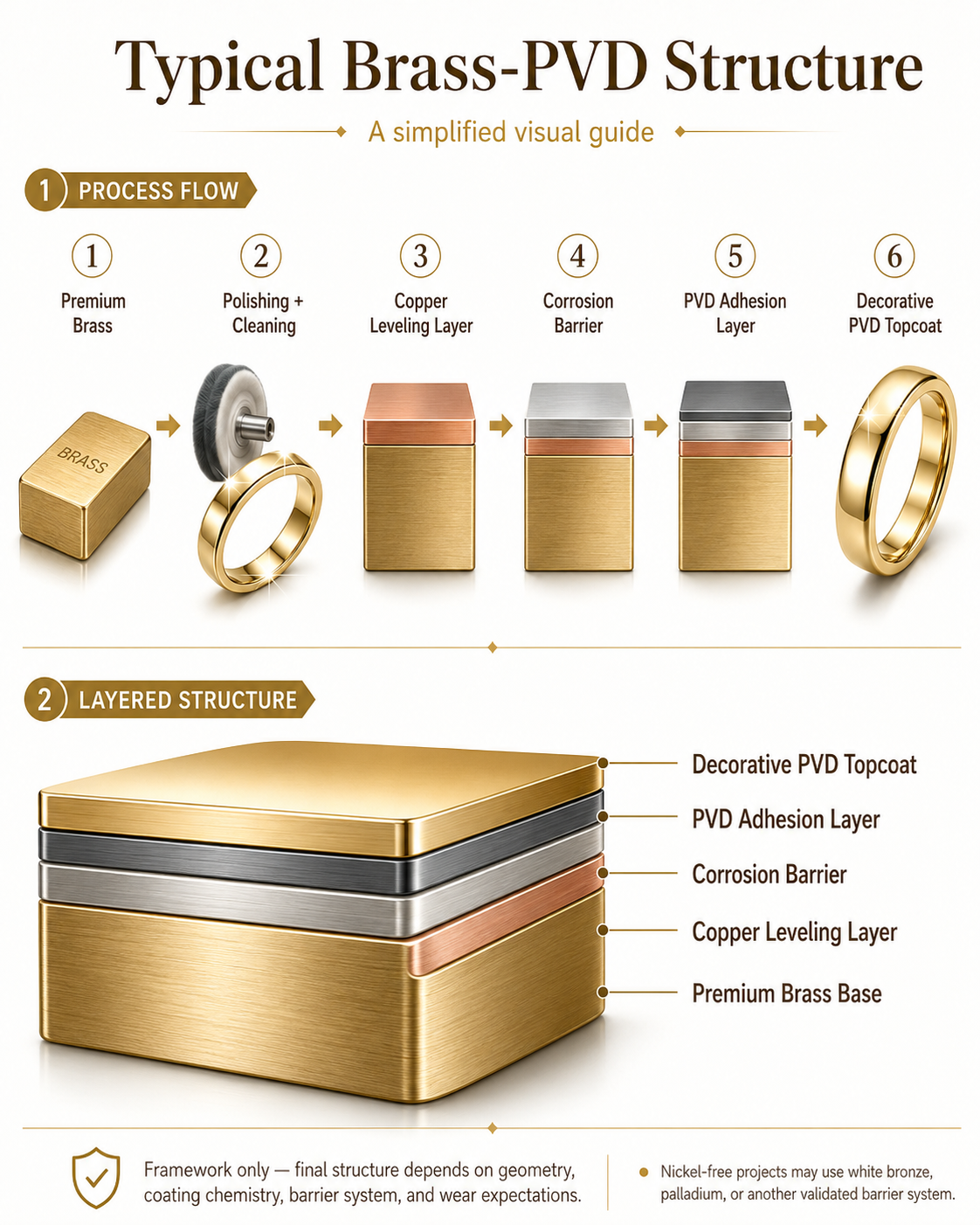

A Typical Brass-PVD Structure

A common industrial structure may follow this logic:

Premium brass → polishing and cleaning → copper leveling layer → nickel or nickel-free corrosion barrier → PVD adhesion layer → decorative PVD topcoat

For nickel-free projects, copper may be used as a leveling layer, while white bronze, palladium, or another validated system may be considered as a corrosion and diffusion barrier. These types of underlayers are identified in published decorative-PVD research as possible structures for improving the performance of coated brass.

The exact structure depends on:

• the target country;
• nickel-release requirements;
• the desired color;
• the product price;
• the shape and recessed areas;
• skin-contact conditions; and
• the agreed-upon wear and corrosion tests.

Direct PVD on brass is technically possible, but a finish that looks attractive immediately after production is not automatically reliable in long-term commercial use. Rings, bracelets, chains, and clasps deserve particular attention because they experience sweat, impact, and repeated metal-to-metal friction.

Send your CAD file, base metal, target PVD color, quantity, and required performance tests to receive a project-specific coating assessment.

Benefits of PVD-Coated Silver and Brass Jewelry

Improved Wear Resistance

Hard decorative PVD coatings can provide better wear resistance than very thin decorative flash plating. This can be valuable for rings, bracelets, chains, watch-style accessories, and other high-contact surfaces.

However, wear-resistant does not mean scratch-proof. Deep scratches, impact, repeated friction, and contact with hard surfaces can still damage the finish.

Better Color Stability Than Very Thin Flash Plating

A properly prepared PVD system can retain its appearance longer than an extremely thin flash-plated coating. Actual performance depends on the complete layer stack, coating composition, thickness, uniformity, surface preparation, and wearing conditions.

Brands should avoid promising a fixed number of years unless that claim is supported by relevant test data and real product-use evidence. An earring worn occasionally and a ring exposed to handwashing and abrasion do not experience the same conditions.

Broad Decorative Color Range

PVD can produce a wide range of metallic and non-metallic shades. Color consistency depends on stable deposition parameters and disciplined production control.

For bulk orders, the brand should approve a physical master sample rather than relying only on digital photographs. The supplier and buyer should also agree on an objective color tolerance using an appropriate color-measurement method.

Improved Resistance to Moisture, Sweat and Corrosion

A well-engineered PVD system can improve resistance to sweat, moisture, oxidation, and everyday environmental exposure.

The correct wording is usually water-resistant, wear-resistant, or corrosion-resistant, supported by defined testing. Avoid claims such as “permanent,” "scratch-proof," or “corrosion-proof” unless the product has evidence that genuinely supports those claims.

The FTC Jewelry Guides state that “corrosion proof” and similar claims should only be used when all parts of a product are immune from corrosion for its expected lifetime. “Corrosion resistant” also requires the product to avoid material corrosion damage during the major portion of its expected lifetime under normal use.

Minimal Dimensional Change

Because PVD is a thin-film process, it can preserve engraving, surface texture, stone settings, and fine design details. A polished substrate generally remains glossy, while a brushed substrate retains its satin character.

The same advantage creates a limitation: PVD will not repair poor polishing or fill significant casting pores.

Limitations: When PVD May Not Be the Best Choice

PVD is not the ideal finish for every jewelry design.

It may require modification or an alternative process when the product

• must be resized or bent after coating;
• contains extensive resin, enamel, glue, pearls or heat-sensitive stones;
• has many moving components and metal-to-metal contact points;
• depends on the lowest possible unit cost;
• has deep recesses that are difficult to coat uniformly; or
• is ordered in a quantity too small to use vacuum-chamber capacity efficiently.

Chains, clasps, and articulated bracelets deserve realistic expectations. Contact points can gradually wear even when the external surfaces remain attractive.

Sampling should therefore be completed on the actual jewelry design, not only on a flat test coupon.

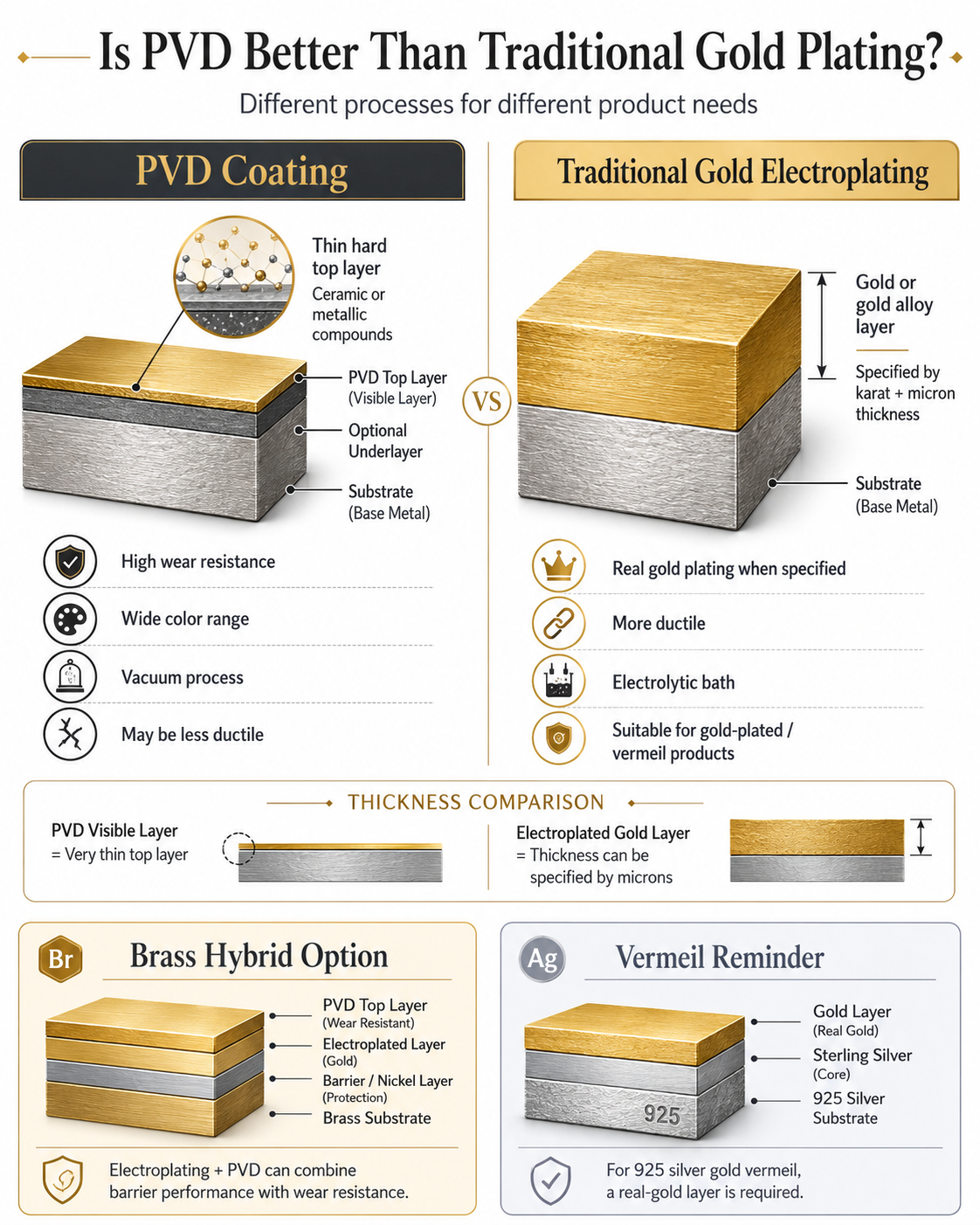

Is PVD Better Than Traditional Gold Plating?

PVD and traditional electroplating solve different product needs. One is not universally better than the other.
